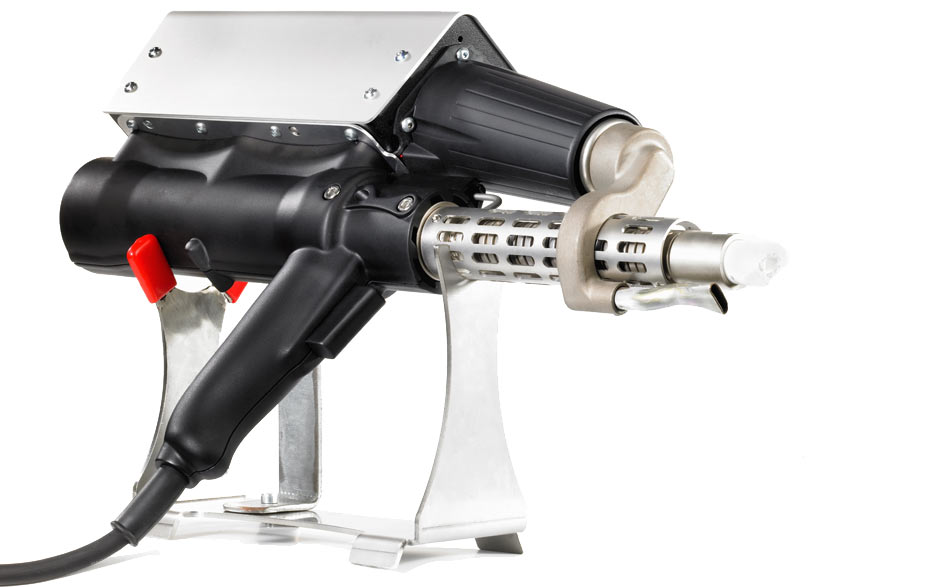

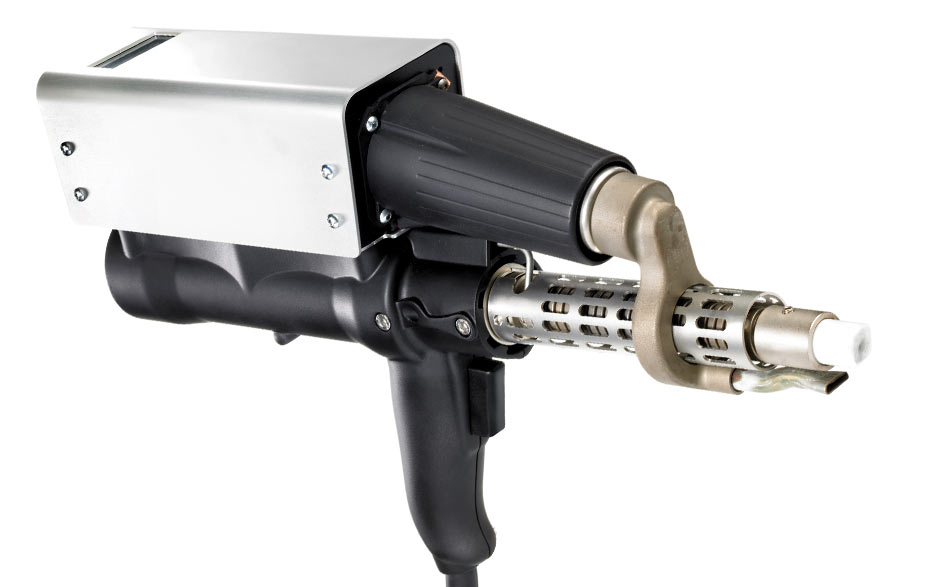

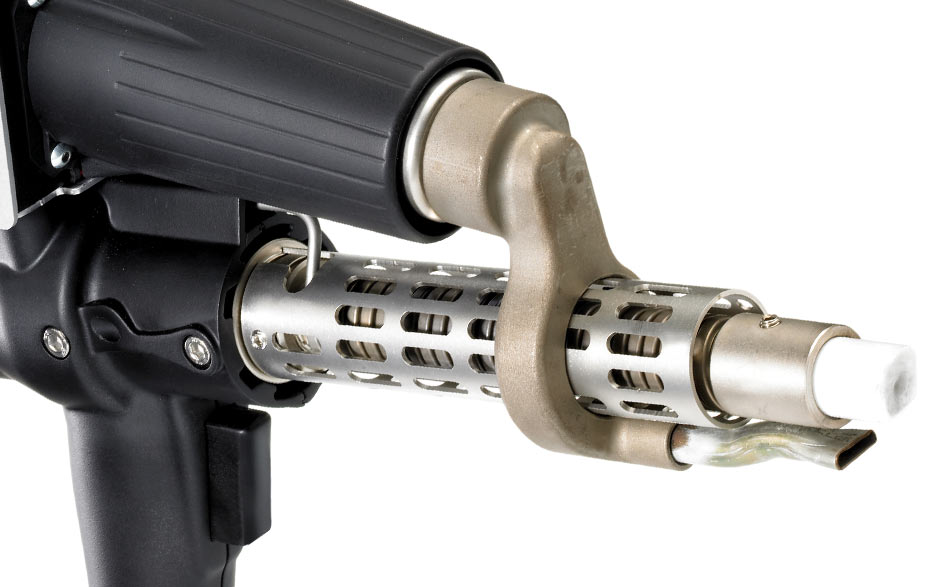

The Mini Xtruder is totally self-contained and has an integrated onboard preheat air source, and is small enough and light enough to be used with one hand. Getting to those hard to reach places is no longer a problem. Digital speed, material and temperature settings are displayed on the top of the motor housing. Its teflon shoe is replaceable just like shoes on larger extruders. The preheat tube can be repositioned for bottom or side mount use. The MiniX uses a real auger screw for thorough material mixing and consistent heat transfer. No air pistons here.

To Order or read more information on this product, please Click Here, (our Abbeon.com website).

Features

Technical Data

• For use with PP/ PVC/ PE/ PVDF/ Nylon/ Polyurethane and others. Pre-set menu for parameters of Thermoplastics to be welded. The only Single Hand-operated Extruder with integrated onboard pre-heat source. Separate digital control readouts for extrudate and pre- heat temperature. Case included.

• Weight:	7.5 lbs
  Welding Rate:	1.5 lbs/h with 1/8" rod.
  Voltage:	110V
  Welding Materials:	PP/ PE/ PVC/ PVDF/ Nylon/ Polyurethane
  Rod Diameter:	03mm (1/8") round
